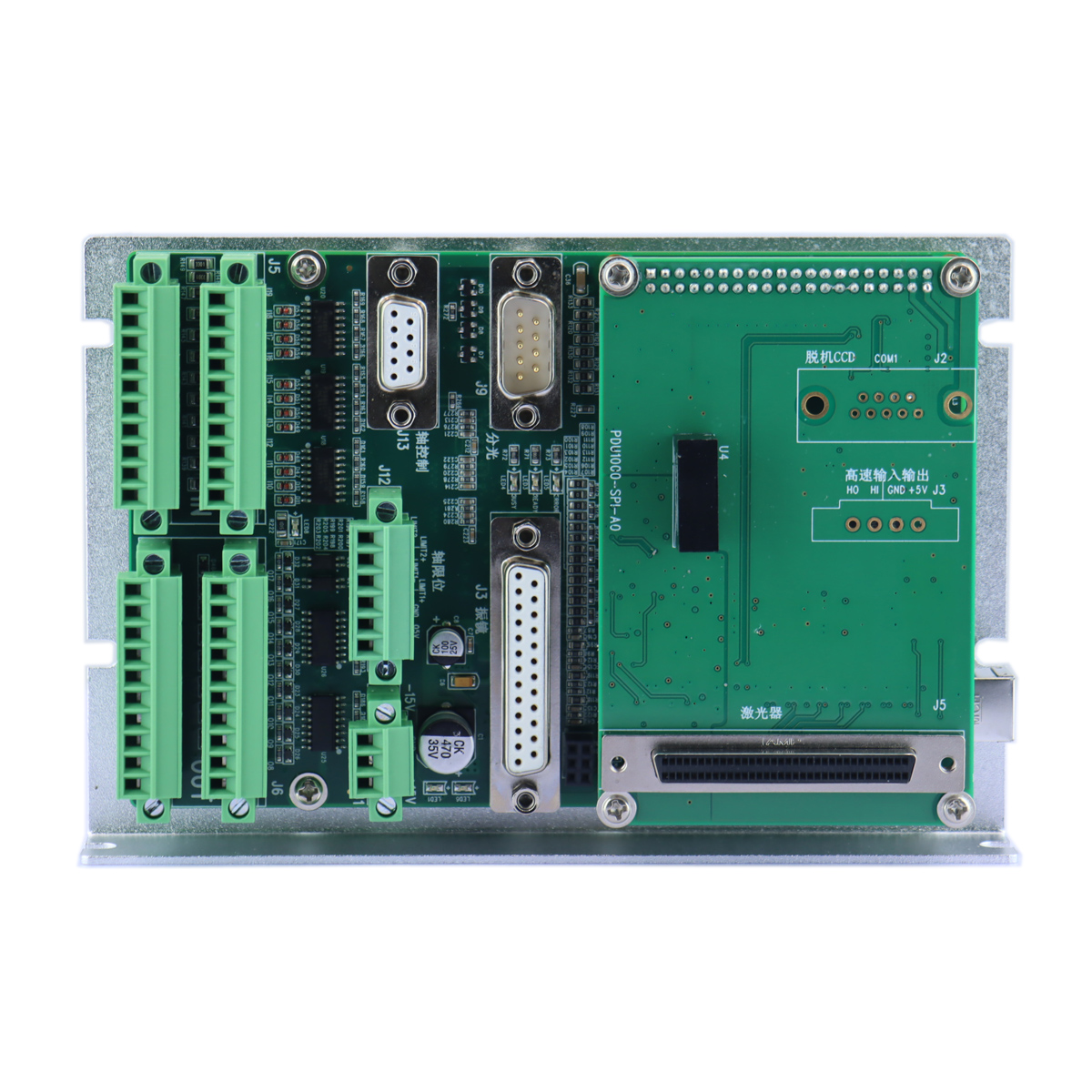

PDU1000-SPI Laser Control Card

Electrical Specifications

Operating Voltage        +12~+24V, 5A

Typical Power        ≤5W

Interface & Communication

Communication Interface        USB

Laser Interface        SCSI 68-Pin Female

Compatible Laser Type        SPI Laser

Galvanometer Protocol        XY2-100 / XY2-100_FB, supports closed-loop galvanometer control

Expansion Interface        Encoder / Axis Control Module

Performance Specifications

Controlled Axes        2 Axes

PWM Output Frequency        Up to 10MHz

Minimum Pulse Width        0.02μs

Digital I/O        20 Inputs / 18 Outputs

Environment & Certifications

Operating Temperature        0°C ~ 55°C

Storage Temperature        -20°C ~ 70°C

Certification Standard        CE

Dimensions        167mm × 110mm × 37.5mm
